SAF67DV71S4詳細信息
SAF67DV71S4
訂購熱線：13360667204
關鍵詞：0.25KW制動減速電機一體機_SAF67DV71S4_SAF67DM71S4
SAF67DV71S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| SAF67DV71S4 | 217.41 | 0.25KW | 6.00rpm | 245N.m | 36kg | 10300N | 2.10 |
| SAF67DV71S4 | 190.11 | 0.25KW | 6.80rpm | 215N.m | 36kg | 10400N | 2.40 |
| SAF67DV71S4 | 180.60 | 0.25KW | 7.20rpm | 205N.m | 36kg | 10500N | 2.50 |
| SAF67DV71S4 | 158.45 | 0.25KW | 8.20rpm | 187N.m | 36kg | 10500N | 2.80 |
| SAF67DV71S4 | 134.40 | 0.25KW | 9.70rpm | 161N.m | 36kg | 10600N | 3.20 |
| SAF67DV71S4 | 121.33 | 0.25KW | 11.0rpm | 147N.m | 36kg | 10600N | 3.50 |
| SAF67DV71S4 | 106.75 | 0.25KW | 12.0rpm | 131N.m | 36kg | 10700N | 4.00 |
SAF67DM71S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| SAF67DM71S4 | 217.41 | 0.25KW | 6.00rpm | 245N.m | 36kg | 10300N | 2.10 |
| SAF67DM71S4 | 190.11 | 0.25KW | 6.80rpm | 215N.m | 36kg | 10400N | 2.40 |
| SAF67DM71S4 | 180.60 | 0.25KW | 7.20rpm | 205N.m | 36kg | 10500N | 2.50 |
| SAF67DM71S4 | 158.45 | 0.25KW | 8.20rpm | 187N.m | 36kg | 10500N | 2.80 |
| SAF67DM71S4 | 134.40 | 0.25KW | 9.70rpm | 161N.m | 36kg | 10600N | 3.20 |
| SAF67DM71S4 | 121.33 | 0.25KW | 11.0rpm | 147N.m | 36kg | 10600N | 3.50 |
| SAF67DM71S4 | 106.75 | 0.25KW | 12.0rpm | 131N.m | 36kg | 10700N | 4.00 |

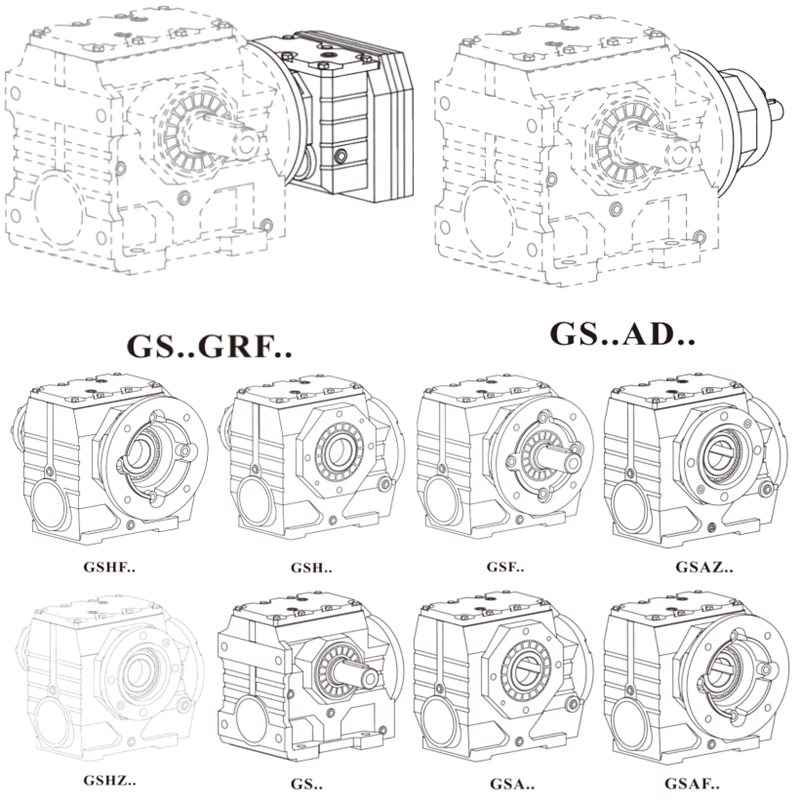

SAF67DV71S4減速機電動機類型：
S..DR..底腳安裝斜齒輪自鎖減速機
SA..DR..空心軸安裝斜齒輪蝸輪蝸桿減速機
SAF..DR..是B5法蘭安裝款式斜齒輪蝸輪蝸桿減速機
SAZ..DR..是B14法蘭空心軸安裝斜齒輪蝸輪蝸桿減速機
SF..DR..是B5法蘭安裝斜齒輪蝸輪蝸桿減速機
SH..DR..是空心軸鎖緊盤安裝斜齒輪蝸輪蝸桿減速機
SHF..DR..是B5法蘭空心軸鎖緊盤安裝斜齒輪蝸輪蝸桿減速機
SHZ..DR..是B14法蘭空心軸鎖緊盤安裝斜齒輪蝸輪蝸桿減速機

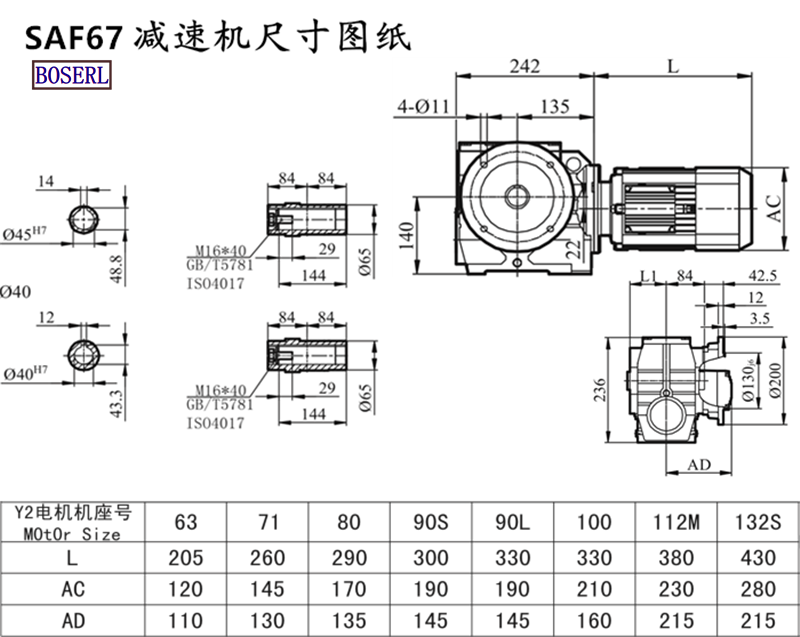

SAF67DV71S4減速機電動機安裝尺寸圖紙
SAF67DV71S4減速機電動機生產工廠展示：看廠請?zhí)崆叭祛A約
法蘭式減速機應用案例展示：
關鍵詞:伺SAF系列減速機_法蘭式減速器與電機_法蘭式減速機_旋轉減速電機_懸掛式減速機_懸掛式電機減速器一套_SAF系列減速機生產廠家
SAF系列減速機型號：SAF37減速機,SAF47減速機,SAF57減速機,SAF67減速機,SAF77減速機,SAF87減速機,SAF97
SAF系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-22KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 0.25KW制動減速電機一體機 SAF67DV71S4 SAF67DM71S4
