S47DV71S4詳細信息
S47DV71S4
關鍵詞：輸出轉數165轉減速機電機_S47DV71S4_S47DM71S4_165轉一分鐘減速電機_每分鐘轉165轉齒輪減速箱馬達_165轉/分鐘減速器_165轉電機減速機
S47DV71S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| S47DV71S4 | 201.00 | 0.25KW | 6.50rpm | 205N.m | 20kg | 5120N | 0.80 |
| S47DV71S4 | 184.80 | 0.25KW | 7.00rpm | 194N.m | 20kg | 5210N | 0.85 |
| S47DV71S4 | 158.12 | 0.25KW | 8.20rpm | 170N.m | 20kg | 5340N | 1.00 |
| S47DV71S4 | 137.05 | 0.25KW | 99.50rpm | 150N.m | 20kg | 5440N | 1.10 |
| S47DV71S4 | 128.10 | 0.25KW | 10.0rpm | 141N.m | 20kg | 5480N | 1.20 |
| S47DV71S4 | 110.73 | 0.25KW | 12.0rpm | 124N.m | 20kg | 5560N | 1.35 |
| S47DV71S4 | 94.08 | 0.25KW | 14.0rpm | 108N.m | 20kg | 5630N | 1.55 |
| S47DV71S4 | 84.00 | 0.25KW | 15.0rpm | 98N.m | 20kg | 5670N | 1.70 |
| S47DV71S4 | 71.75 | 0.25KW | 18.0rpm | 85N.m | 20kg | 5720N | 1.95 |
| S47DV71S4 | 69.39 | 0.25KW | 19.0rpm | 97N.m | 20kg | 5640N | 1.60 |
| S47DV71S4 | 67.20 | 0.25KW | 19.0rpm | 80N.m | 20kg | 5740N | 2.10 |
| S47DV71S4 | 63.80 | 0.25KW | 20.0rpm | 90N.m | 20kg | 5670N | 1.70 |
| S47DV71S4 | 54.59 | 0.25KW | 24.0rpm | 78N.m | 20kg | 5720N | 2.00 |
| S47DV71S4 | 47.32 | 0.25KW | 27.0rpm | 68N.m | 20kg | 5760N | 2.30 |
S47DM71S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| S47DM71S4 | 201.00 | 0.25KW | 6.50rpm | 205N.m | 20kg | 5120N | 0.80 |
| S47DM71S4 | 184.80 | 0.25KW | 7.00rpm | 194N.m | 20kg | 5210N | 0.85 |
| S47DM71S4 | 158.12 | 0.25KW | 8.20rpm | 170N.m | 20kg | 5340N | 1.00 |
| S47DM71S4 | 137.05 | 0.25KW | 99.50rpm | 150N.m | 20kg | 5440N | 1.10 |
| S47DM71S4 | 128.10 | 0.25KW | 10.0rpm | 141N.m | 20kg | 5480N | 1.20 |
| S47DM71S4 | 110.73 | 0.25KW | 12.0rpm | 124N.m | 20kg | 5560N | 1.35 |
| S47DM71S4 | 94.08 | 0.25KW | 14.0rpm | 108N.m | 20kg | 5630N | 1.55 |
| S47DM71S4 | 84.00 | 0.25KW | 15.0rpm | 98N.m | 20kg | 5670N | 1.70 |
| S47DM71S4 | 71.75 | 0.25KW | 18.0rpm | 85N.m | 20kg | 5720N | 1.95 |
| S47DM71S4 | 69.39 | 0.25KW | 19.0rpm | 97N.m | 20kg | 5640N | 1.60 |
| S47DM71S4 | 67.20 | 0.25KW | 19.0rpm | 80N.m | 20kg | 5740N | 2.10 |
| S47DM71S4 | 63.80 | 0.25KW | 20.0rpm | 90N.m | 20kg | 5670N | 1.70 |
| S47DM71S4 | 54.59 | 0.25KW | 24.0rpm | 78N.m | 20kg | 5720N | 2.00 |
| S47DM71S4 | 47.32 | 0.25KW | 27.0rpm | 68N.m | 20kg | 5760N | 2.30 |
S47DV71S4齒輪減速機馬達類型：

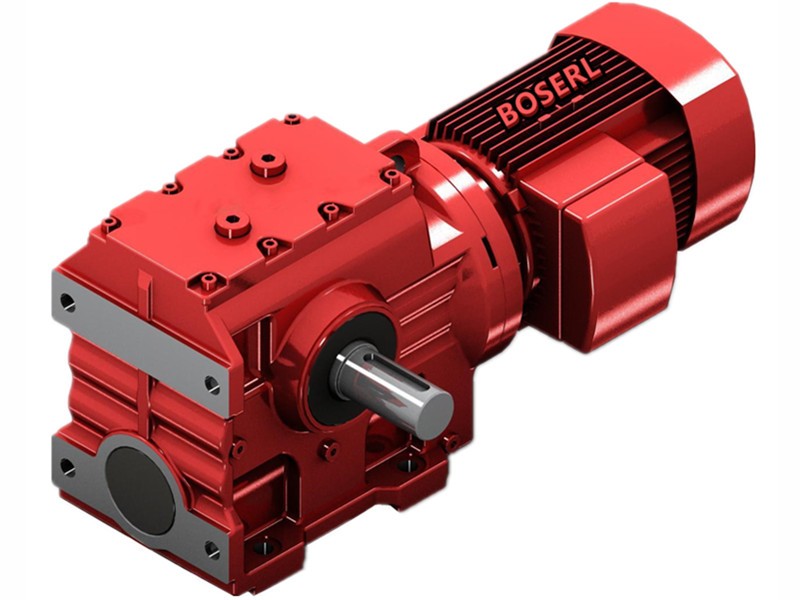

S..DR..底腳安裝斜齒輪自鎖減速機

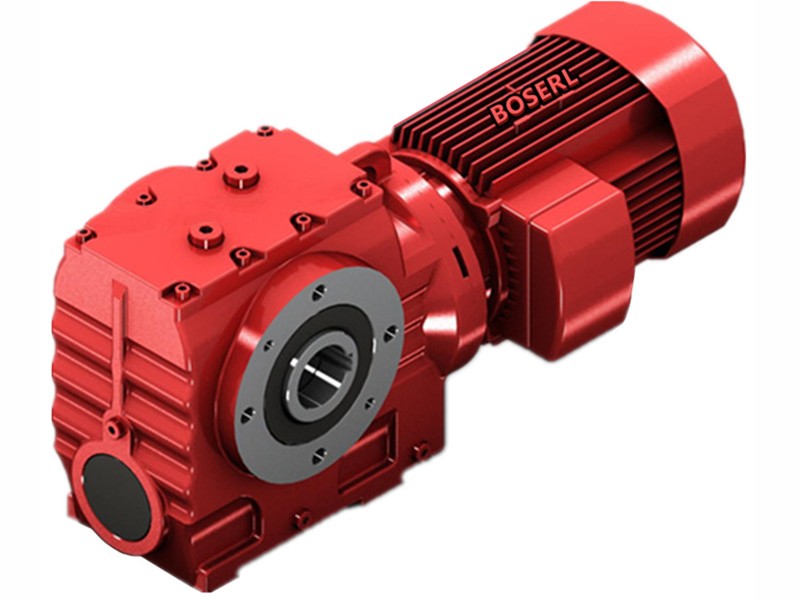

SA..DR..空心軸安裝斜齒輪蝸輪蝸桿減速機
SAF..DR..是B5法蘭安裝款式斜齒輪蝸輪蝸桿減速機
SAZ..DR..是B14法蘭空心軸安裝斜齒輪蝸輪蝸桿減速機

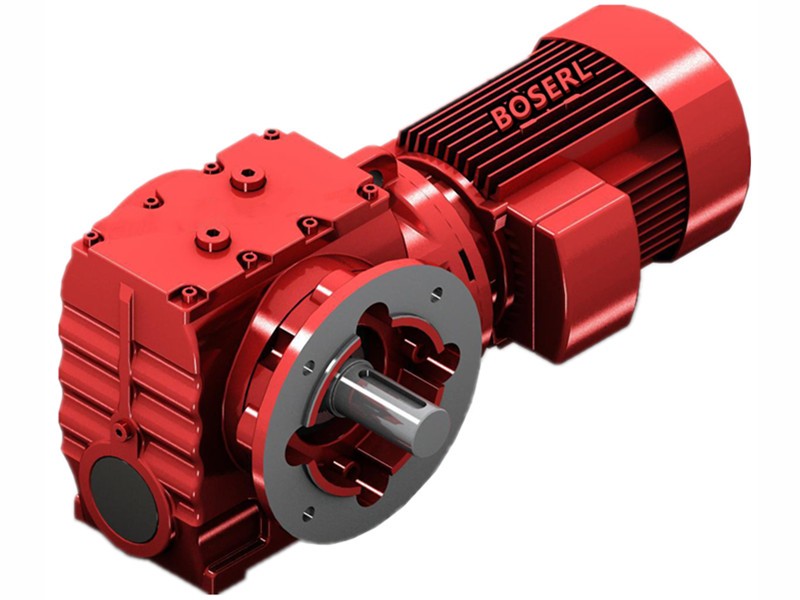

SF..DR..是B5法蘭安裝斜齒輪蝸輪蝸桿減速機
SH..DR..是空心軸鎖緊盤安裝斜齒輪蝸輪蝸桿減速機
SHF..DR..是B5法蘭空心軸鎖緊盤安裝斜齒輪蝸輪蝸桿減速機
SHZ..DR..是B14法蘭空心軸鎖緊盤安裝斜齒輪蝸輪蝸桿減速機
S47DV71S4齒輪減速機馬達安裝尺寸圖紙
S47DV71S4齒輪減速機馬達生產工廠展示：看廠請?zhí)崆叭祛A(yù)約
S系列減速機應用案例展示：
關鍵詞:S系列減速機_GS蝸輪蝸桿減速機電機一套_具有自鎖功能減速器與電機_有自鎖功能減速機_S蝸輪蝸桿減速機_S系列減速機生產廠家
S系列減速機型號：S37減速機,S47減速機,S57減速機,S67減速機,S77減速機,S87減速機,S97減速機
S系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-22KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 輸出轉數165轉減速機電機 S47DV71S4 S47DM71S4 165轉一分鐘減速電機 每分鐘轉165轉齒輪減速箱馬達 165轉/分鐘減速器 165轉電機減速機
