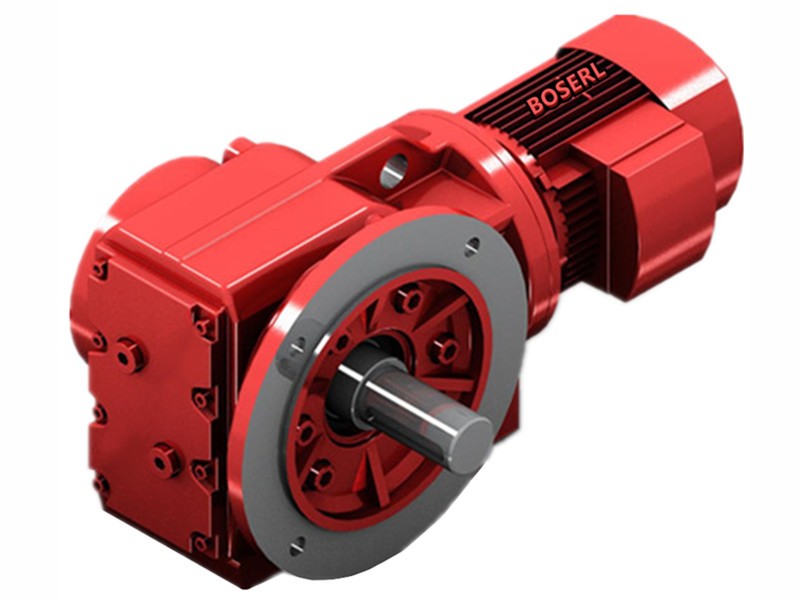

KF77DRN160S4詳細信息
KF77DRN160S4
關鍵詞：起吊59噸負載電機減速機_KF77DRN160S4_KF77DV160S4
KF77DRN160S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| KF77DRN160S4 | 23.08 | 9.2KW | 63rpm | 1390N.m | 125Kg | 16400N | 1.1 |
| KF77DRN160S4 | 20.25 | 9.2KW | 72rpm | 1220N.m | 125Kg | 17400N | 1.25 |
| KF77DRN160S4 | 17.87 | 9.2KW | 82rpm | 1070N.m | 125Kg | 17600N | 1.35 |
| KF77DRN160S4 | 15.84 | 9.2KW | 92rpm | 950N.m | 125Kg | 17300N | 1.45 |
| KF77DRN160S4 | 13.52 | 9.2KW | 108rpm | 810N.m | 125Kg | 17000N | 1.65 |
| KF77DRN160S4 | 12.36 | 9.2KW | 118rpm | 745N.m | 125Kg | 16300N | 1.35 |
| KF77DRN160S4 | 10.84 | 9.2KW | 135rpm | 650N.m | 125Kg | 16000N | 1.5 |
| KF77DRN160S4 | 9.56 | 9.2KW | 153rpm | 575N.m | 125Kg | 15700N | 1.65 |
| KF77DRN160S4 | 8.48 | 9.2KW | 172rpm | 510N.m | 125Kg | 15300N | 1.75 |
| KF77DRN160S4 | 7.24 | 9.2KW | 202rpm | 435N.m | 125Kg | 14900N | 1.9 |
KF77DV160S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| KF77DV160S4 | 23.08 | 9.2KW | 63rpm | 1390N.m | 125Kg | 16400N | 1.1 |
| KF77DV160S4 | 20.25 | 9.2KW | 72rpm | 1220N.m | 125Kg | 17400N | 1.25 |
| KF77DV160S4 | 17.87 | 9.2KW | 82rpm | 1070N.m | 125Kg | 17600N | 1.35 |
| KF77DV160S4 | 15.84 | 9.2KW | 92rpm | 950N.m | 125Kg | 17300N | 1.45 |
| KF77DV160S4 | 13.52 | 9.2KW | 108rpm | 810N.m | 125Kg | 17000N | 1.65 |
| KF77DV160S4 | 12.36 | 9.2KW | 118rpm | 745N.m | 125Kg | 16300N | 1.35 |
| KF77DV160S4 | 10.84 | 9.2KW | 135rpm | 650N.m | 125Kg | 16000N | 1.5 |
| KF77DV160S4 | 9.56 | 9.2KW | 153rpm | 575N.m | 125Kg | 15700N | 1.65 |
| KF77DV160S4 | 8.48 | 9.2KW | 172rpm | 510N.m | 125Kg | 15300N | 1.75 |
| KF77DV160S4 | 7.24 | 9.2KW | 202rpm | 435N.m | 125Kg | 14900N | 1.9 |
KF77DRN160S4減速機類型：
K..DR..底腳安裝斜齒輪—傘齒輪減速電機
KA..B DR..底腳空心軸安裝斜齒輪—傘齒輪減速電機
KV..B DR..底腳花鍵空心軸安裝斜齒輪—傘齒輪減速電機
KH..B DR..底腳空心軸鎖緊盤安裝斜齒輪—傘齒輪減速機
KF..DR..B5法蘭安裝斜齒輪—傘齒輪減速電機
KAF..DR..B5法蘭空心軸安裝斜齒輪—傘齒輪減速電機
KVF..DR..B5法蘭花鍵空心軸安裝斜齒輪—傘齒輪減速電機
KHF..DR..B5法蘭空心軸鎖緊盤安裝斜齒輪—傘齒輪減速電機
KA..DR..空心軸斜齒輪─傘齒輪減速電機
KV..DR..花鍵空心軸安裝斜齒輪—傘齒輪減速電機
KH..DR..空心軸鎖緊盤斜齒輪─傘齒輪減速電機
KT..DR..空心軸安裝斜齒輪—傘齒輪減速電機
KAZ..DR..B14法蘭空心軸安裝斜齒輪─傘齒輪減速電機
KVZ..DR..B14法蘭花鍵空心軸安裝斜齒輪—傘齒輪減速電機
KHZ..DR..B14法蘭空心軸鎖緊盤安裝斜齒輪—傘齒輪減速電機
KF77DRN160S4減速機馬達安裝尺寸圖紙
KF77DRN160S4減速機生產工廠展示：看廠請?zhí)崆叭祛A(yù)約
大功率減速電機應用案例展示：
關鍵詞:KF系列齒輪減速機與電機_大功率減速電機_大負載減速器_大負載減速機電機_大功率電機減速機_大功率電動機減速機_大負載電動機減速機一套生產廠家
KF系列減速機型號：KF37減速機,KF47減速機,KF57減速機,KF67減速機,KF77減速機,KF87減速機,KF97減速機,KF107減速機,KF127減速機,KF157減速機,KF167減速機,KF187減速機
KF系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-200KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 起吊59噸負載電機減速機 KF77DRN160S4 KF77DV160S4
- 上一條KF77DRS132M4
- 下一條KF77DM160S4
