FAF97DRN132MC4詳細信息
FAF97DRN132MC4
關鍵詞：冷彎成型機電機減速機_FAF97DRN132MC4_FAF97DRN132ML4
FAF97DRN132MC4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| FAF97DRN132MC4 | 97.58 | 7.5KW | 15.0rpm | 4750N.m | 333kg | 24800N | 0.90 |
| FAF97DRN132MC4 | 89.85 | 7.5KW | 16.0rpm | 4370N.m | 333kg | 29700N | 1.00 |
| FAF97DRN132MC4 | 86.59 | 7.5KW | 17.0rpm | 4210N.m | 333kg | 30100N | 1.00 |
| FAF97DRN132MC4 | 80.31 | 7.5KW | 18.0rpm | 3910N.m | 333kg | 31000N | 1.10 |
| FAF97DRN132MC4 | 75.63 | 7.5KW | 19.0rpm | 3680N.m | 333kg | 31600N | 1.15 |
| FAF97DRN132MC4 | 72.29 | 7.5KW | 20.0rpm | 3520N.m | 333kg | 32000N | 1.20 |
| FAF97DRN132MC4 | 65.47 | 7.5KW | 22.0rpm | 3180N.m | 333kg | 32200N | 1.35 |
| FAF97DRN132MC4 | 58.06 | 7.5KW | 25.0rpm | 2820N.m | 333kg | 31700N | 1.50 |
| FAF97DRN132MC4 | 52.49 | 7.5KW | 28.0rpm | 2550N.m | 333kg | 31300N | 1.70 |
| FAF97DRN132MC4 | 44.49 | 7.5KW | 33.0rpm | 2160N.m | 333kg | 30500N | 2.00 |
| FAF97DRN132MC4 | 38.86 | 7.5KW | 38.0rpm | 1890N.m | 333kg | 29800N | 2.30 |
| FAF97DRN132MC4 | 32.50 | 7.5KW | 45.0rpm | 1580N.m | 333kg | 28800N | 2.70 |
| FAF97DRN132MC4 | 43.28 | 7.5KW | 34.0rpm | 2100N.m | 333kg | 30400N | 1.45 |
| FAF97DRN132MC4 | 36.64 | 7.5KW | 40.0rpm | 1780N.m | 333kg | 29400N | 1.70 |
| FAF97DRN132MC4 | 33.91 | 7.5KW | 43.0rpm | 1650N.m | 333kg | 29000N | 2.60 |
| FAF97DRN132MC4 | 30.39 | 7.5KW | 48.0rpm | 1480N.m | 333kg | 28400N | 2.90 |
FAF97DRN132ML4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| FAF97DRN132ML4 | 97.58 | 7.5KW | 15.0rpm | 4750N.m | 333kg | 24800N | 0.90 |
| FAF97DRN132ML4 | 89.85 | 7.5KW | 16.0rpm | 4370N.m | 333kg | 29700N | 1.00 |
| FAF97DRN132ML4 | 86.59 | 7.5KW | 17.0rpm | 4210N.m | 333kg | 30100N | 1.00 |
| FAF97DRN132ML4 | 80.31 | 7.5KW | 18.0rpm | 3910N.m | 333kg | 31000N | 1.10 |
| FAF97DRN132ML4 | 75.63 | 7.5KW | 19.0rpm | 3680N.m | 333kg | 31600N | 1.15 |
| FAF97DRN132ML4 | 72.29 | 7.5KW | 20.0rpm | 3520N.m | 333kg | 32000N | 1.20 |
| FAF97DRN132ML4 | 65.47 | 7.5KW | 22.0rpm | 3180N.m | 333kg | 32200N | 1.35 |
| FAF97DRN132ML4 | 58.06 | 7.5KW | 25.0rpm | 2820N.m | 333kg | 31700N | 1.50 |
| FAF97DRN132ML4 | 52.49 | 7.5KW | 28.0rpm | 2550N.m | 333kg | 31300N | 1.70 |
| FAF97DRN132ML4 | 44.49 | 7.5KW | 33.0rpm | 2160N.m | 333kg | 30500N | 2.00 |
| FAF97DRN132ML4 | 38.86 | 7.5KW | 38.0rpm | 1890N.m | 333kg | 29800N | 2.30 |
| FAF97DRN132ML4 | 32.50 | 7.5KW | 45.0rpm | 1580N.m | 333kg | 28800N | 2.70 |
| FAF97DRN132ML4 | 43.28 | 7.5KW | 34.0rpm | 2100N.m | 333kg | 30400N | 1.45 |
| FAF97DRN132ML4 | 36.64 | 7.5KW | 40.0rpm | 1780N.m | 333kg | 29400N | 1.70 |
| FAF97DRN132ML4 | 33.91 | 7.5KW | 43.0rpmL | 1650N.m | 333kg | 29000N | 2.60 |
| FAF97DRN132ML4 | 30.39 | 7.5KW | 48.0rpm | 1480N.m | 333kg | 28400N | 2.90 |

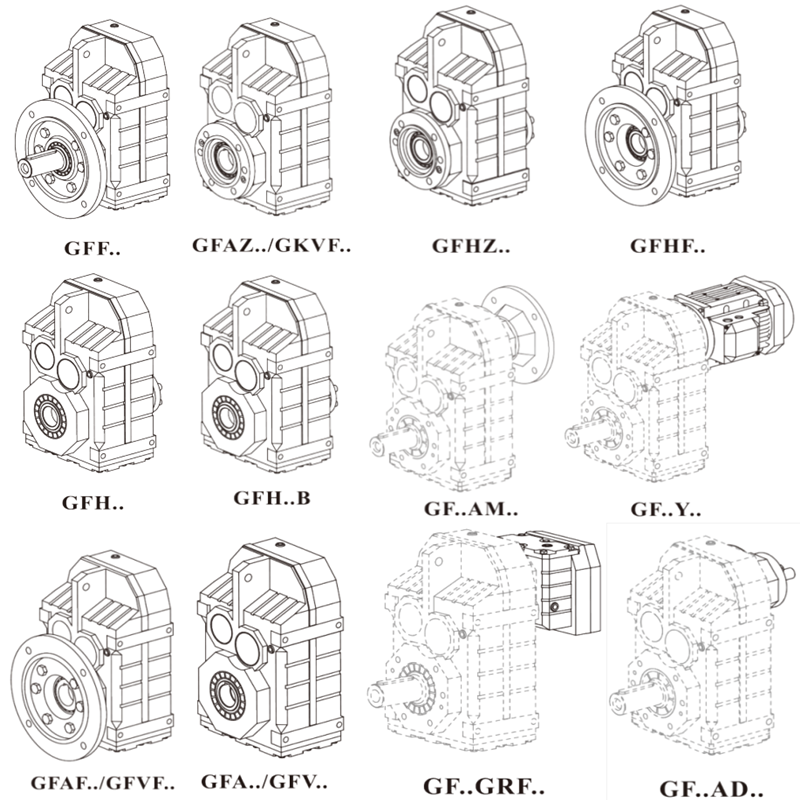

FAF97DRN132MC4電動機減速機類型：
F..底腳安裝平行軸—斜齒輪平行軸斜齒輪減速機
FA..B底腳空心軸安裝平行軸—斜齒輪減速機
FV..B底腳花鍵空心軸安裝平行軸—斜齒輪減速機
FA..空心軸安裝平行軸—斜齒輪減速機
FV..花鍵空心軸安裝平行軸—斜齒輪減速機
FAF..是B5法蘭空心軸安裝平行軸—斜齒輪減速機
FVF..是B5法蘭花鍵空心軸安裝平行軸—斜齒輪減速機
FAZ..是B14法蘭安裝平行軸—斜齒輪減速機
FVZ..是B14法蘭花鍵空心軸安裝平行軸—斜齒輪減速機
FF..是B5法蘭安裝平行軸—斜齒輪減速機
FH..B底腳空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FH..是空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FHF..是B5法蘭空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FHZ..是B14法蘭空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FAF97DRN132MC4電動機減速機安裝尺寸圖紙
FAF97DRN132MC4電動機減速機生產廠家，看廠請?zhí)崆叭祛A(yù)約三相220V電機減速機
關鍵詞:FAF系列減速機與電機_220V電機減速機一套_三相220V電機減速器_380V電機減速機_三相380V電機減速器_三相減速電機_三相減速機生產廠家
FAF系列減速機型號：FAF27減速機,FAF37減速機,FAF47減速機,FAF67減速機,FAF77減速機,FAF87減速機,FAF97減速機,FAF107減速機,FAF127減速機,FAF157減速機
FAF系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 冷彎成型機電機減速機 FAF97DRN132MC4 FAF97DRN132ML4
